Amphi-Safe® RC3
Safety hatch for drinking water reservoirs
Tailored safety hatch for drinking water reservoirs
An inadequate manhole increases the risk of sabotage of drinking water. If it is also leaky, pollen, air pollutants, insects or smaller animals can get access to the drinking water.
Amphi-Safe® safety hatch keeps both uninvited guests and contaminants away. The door is guaranteed to be tight and very difficult to force. When there are level changes in the reservoir, the air will pass through the air filter instead of slipping through the manhole. With Amphi-Safe® you raise the safety of the water reservoir to a new level and cleaning does not need to be carried out as often.
Drinking water is one of our most important provisions and it is the responsibility of the water producers to ensure that the drinking water is of good quality and safe to drink. To meet these requirements, the reservoir hatch must be air tight and in good condition.
Our safety hatch cover Amphi-Safe® is specially developed to suit this purpose. It is completely airtight and creates an air barrier against external pollutants and protects your drinking water in a safe way.
Safety hatch for drinking water reservoirs with safety class 3

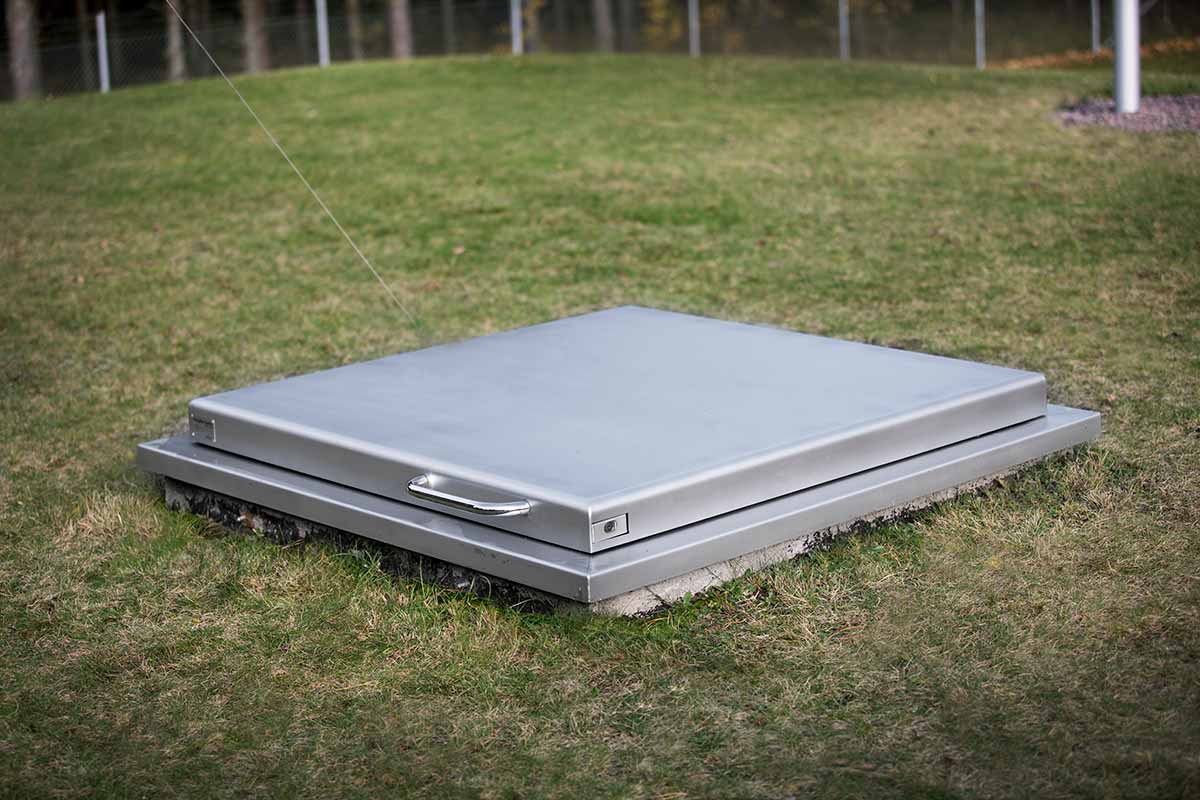

With our Amphi-Safe® RC3 hatch, we believe that no superstructure is needed as there are no visible details that can be cut open or hinges that can get knocked off.
The following special details are available on our RC3 hatch:

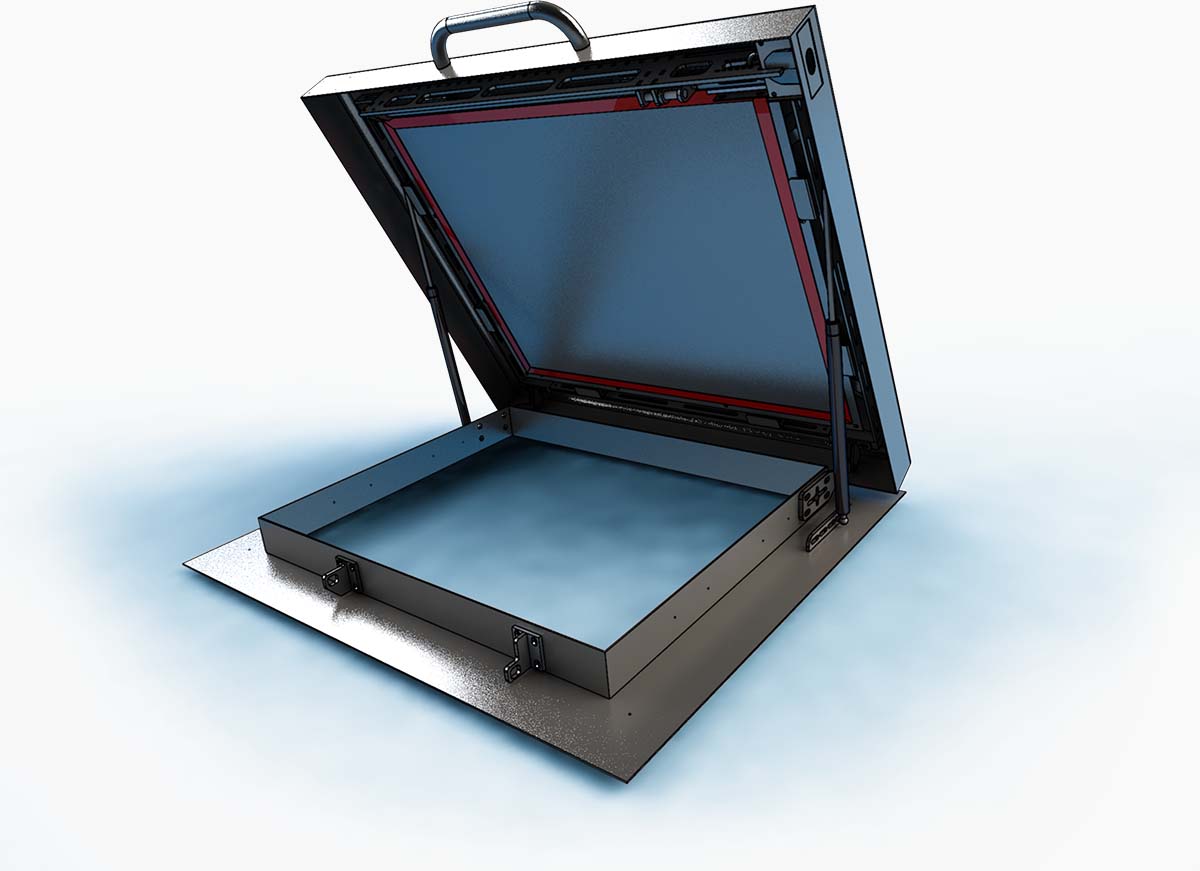

- Spring-suspended sealing strip on the inner protection plate, which means that the door always remains 100% airtight.
- Recessed tamper-proof padlock in class 3, which means that the padlock is completely hidden inside the hatches construction.
- Double locking points for added security.
- Break-protected and hidden details.
Patent number 1400360-2
Function
A facility with content worthy of protection should be secured against external influences. If the plant contains food, leaks that risk contaminating its contents cannot be permitted. Amphi-Safe® RC3 safety hatch protects buses and sabotage against facilities worthy of protection. Our patented construction with spring-suspended sealing strip makes the manhole completely airtight.
| Technical data | Options | Inner sizes |
|---|---|---|
| Acid-resistant steel, EN 1.4404 | Deformation-sensitive alarm | 660 x 660 mm |
| Concealed break-protected details | Customized size | 860 x 860 mm |
| Hygienic | Customized lock | 1060 x 1060 mm |
| Safety class RC3, SS-EN 1630:2011+A1:2016 | Insulation | Customized |
| Weather and tamper protected lock | Fall protection | |
| Double sheet metal barriers | Drip edge on door frame or other special adaptations |
Do you have questions regarding drinking water and facilities?
Since 1998 Amphi-tech has been a trailblazing company in the field of inspection, maintenance, assessment and design of water reservoirs and other hydraulic facilities.
+46 (0) 582-68 68 90
Metallvägen 3
694 60 Åsbro
